saw - sawing system

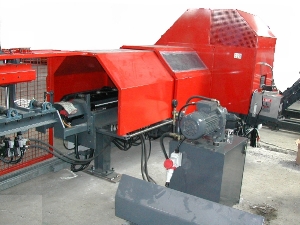

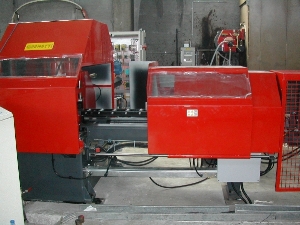

GERNETTI SIC 500 AK + MAC



SIC 500 AK

Reconditioned but with completely new electrical cabinet to cut round from 30 up to 160 mm and square from 30 x 30 to 155 x 155 mm. Used but with mechanical conditions as new and complete of:

Sawblade carriage with with motor kw 22

Sawblade carriage feed through ball recirculation screw

Automatic carriage feed, stroke 1300 mm

Cutting speed from 70 to 150 mt/min

Double vise at independent closing

Compact operator panel with LCD display

Hydraulic unit

Kool-mist cooling system

Motorized chips conveyor

Machine completely guarded at CE standard



LOADING MAGAZINE MAC TYPE

Composed by 4 solid shoulders in heavy structural steelwork as support base of the material and as loading and feeding for round bars and pipes.

Complete of:

Selection and loading of the single bar

Introduction device

Loading magazine completely guarded at CE standard

Useful length mt 6











-----------------------------------------------------------------------------------------------------------

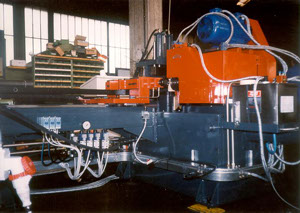

GERNETTI SIC 500 A + MAC



SIC 500 A

Completely reconditioned to cut round ferrous material from 20 up to 170 mm, complete of:

Grinded and hardened sliding guides sawhead

Sawblade carriage feed through ball recirculation screw

Analogical digital indicator to regulate the cutting length and the number of pieces

Cutting speed from 15 to 80 mt/min

Main motor 5.5 Kw

Hydraulic unit motor 2.2. Kw

Electrical cabinet industrial type

Kool-mist

Motorized chips conveyor

Machine completely guarded at CE standard



LOADING MAGAZINE MAC TYPE

Composed by 4 solid shoulders in heavy structural steelwork as support base of the material and as loading and feeding for round bars and pipes.

Complete of:

Selection and loading of the single bar

Introduction device

Loading magazine completely guarded at CE standard

Useful length mt 6







-----------------------------------------------------------------------------------------------------------

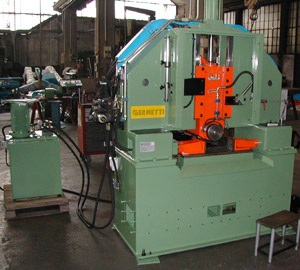

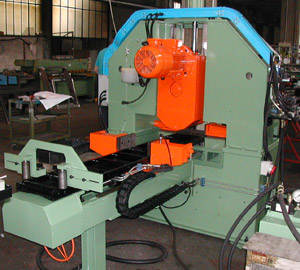

GERNETTI SIC 500 VE-A



VERTICAL AUTOMATIC HYDRAULIC CIRCULAR SAWING MACHINE

Completely revised



For round cut from 20 mm up to 170 mm

For square cut up to 150x150 mm

For plates and profil cut up to 240x130mm and 420x50 mm

Vertical execution, fully hydraulic controls for the movement of the sawblade head and of the principal vises.



Complete of:



Sawblade head with helicoidal gears carburized, hardened and grinded on the revolving

Automatic feed of the bar. Stroke 1000 mm

Feed carriage stroke on ball recirculating screw

Feed carriage through ball recirculating screw with brushless motor

Hardened and ground sawblade carriage guideways

Sawblade head guideways with antifriction insert

Electric micro-switch for the automatic stop of the machine at the end of the cut

Compact operator panel with display LCD for the control of the machine functions and for the adjustment of the cutting length and the number of pieces to be cut

Horizontal hydraulic blocking group composed by 2 couples of vises. One couple put in entry side and one in exit side

Cutting speed adjustable through an inverter from 15 to 50 m/min

Sawblade carriage motor Kw 5.5

PLC – Programmable controller

Electric equipment in self-standing industrial type cabinet connected on a side of the machine, voltage 24 V

Programmable trimming cut

Self-standing hydraulic power unit complete with 4 kW motor, pump, filter and hydraulic equipment grouped on panel

Electropump 260 W and refrigerating unit with adjustable flux tap

Water level indicator

Chips removal device, pin wheel type, for one pitch of sawblade (at customer's choice)

Timed automatic system for the lubrication of sawblade carriage guideways

Motorized chips conveyor

Machine completely guarded at CE standards

Ripari di sicurezza a norme CE
