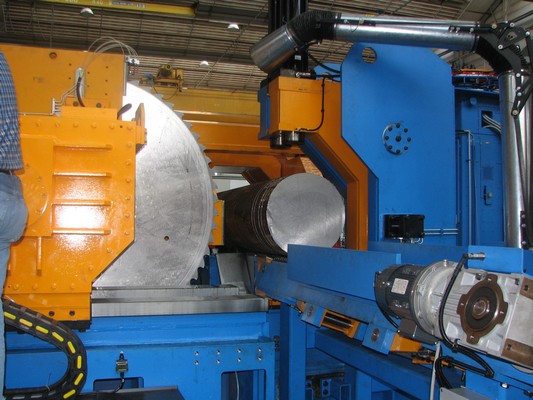

CIRCULAR SAW - SIC 2000K



The use of blades with widia inserts on a machine of such dimensions and with so high cutting capacity has been a gamble whose results have confirmed it has been won.



- Sawblade carriage feed through ball recirculation screw and brushless motor.

- Feed carriage through rack and pinion with brushless motor.

- Carriage stroke from mm 3000 (standard) to mm 6000

- Sawblade carriage suitable for high speed with motor kw 140

- Helicoidal, hardened and grinded gears with a system "zero play" to assure no vibrations at all and a longer blade life.

- Double independent vise with "V" jaws for a perfect clamping of the material.

- Electrical cabinet "industrial type" connected to the machine by means of connectors.

- Control panel "desk type".

- Carbide triple blade guide with carbide plates.

- Cutting speed adjustable through an inverter.

Model

  SIC 2000K

Blade diameter

mm 1800/2000

Round capacity

mm 200 - 700

Square capacity

mm -

Standard leght

mm 3000

On request up to

mm 6000

Cutting speed

m/min 80 - 160

Main motor

kW 140

Pump motor

kW 7,5

Net weight

Kg 32800

Gross weight

Kg 33200

Overall dimensions

mm 4600x2100x3000

saw - sawing system
