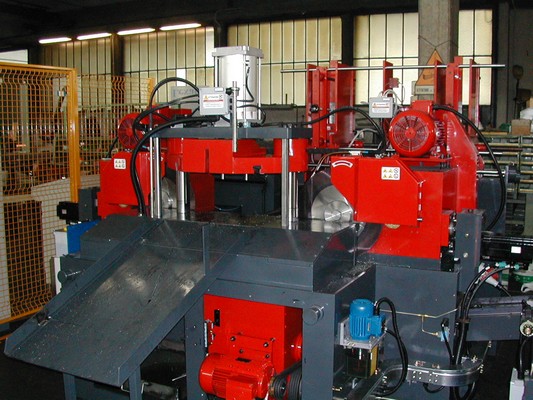

CIRCULAR SAW - SIC 800 3T



These saws are studied for the cutting of steel elbows at 180° and 90° and they can be combined to special loading magazines, of our production, to create an automated sawing system.



- Sawblades carriages feed through ball recirculation guide ways actuated with direct current motor.

- Hydraulic vertical vice, automatically adjustable with two screws to limit the stroke.

- Cutting speed variable adjustable through inverter.

- Self-standing hydraulic unit, with pump, filter, motor and heat exchanger.

- Electric equipment in self-standing industrial type cabinet separated from the machine and connected to it by means of connectors on which have been mounted: push-buttons, general emergency and ammeters for the control of the motor absorption. Control Voltage 24 V.

- Heads stroke adjustment directly from the pulpit.

- Cooling system with tap for the adjustment of the flow.

- Water warning light level.

Horizontal Blade diameter

mm 800

Vertical Blade diameter

mm 800

Cutting capacity

mm 3" - 8"

Cutting speed

m/min 28

Main motor

kW

H 7.5 & V 5.5

Pump motor

kW 4

Net weight

Kg 3250

Gross weight

Kg 4550

Overall dimensions

mm 3000x2000x1800
