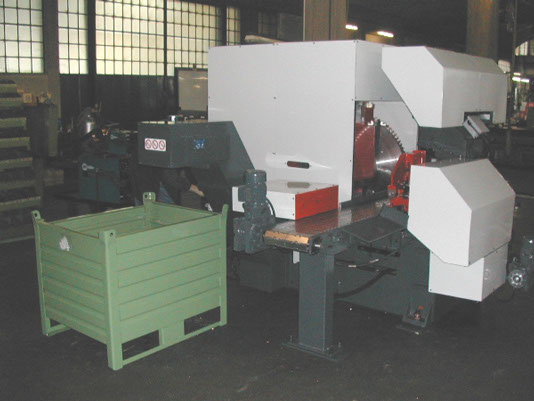

CIRCULAR SAW - SIC 1100NF
- Sawblade carriage feed through ball recirculation screw with brushless motor
- Feed carriage through ball recirculation screw with brushless motor. Carriage stroke from 500 (standard) to 2500 mm
- Sawblade carriage suitable for high speeds with helicoidal hardened, sharpened and grinded gears at "zero play" to grant no vibrations at all and consequently, a longer blade life.
- Control panel and electrical cabinet aboard of the machine
- Double independent vice at 45° on the cutting line for a perfect clamping of the material
- Widia triple carbide blade guide
- Anti burr device
- Very high cutting speed, absolute cutting precision, minimum scrap, big productivity
- Possibility to combine all the loading magazines of our production
Model |
SIC 1100/SNF | SIC 1100/ANF | |
Blade diameter |
mm | 1120 | |
Round capacity |
mm | 100 - 360 | |
Square capacity |
mm | 100 - 330 | |
Standard leght |
mm | 500 | |
On request up to |
mm | 2500 | |
Cutting speed |
m/min | 150 - 1800 | |
Main motor |
kW | 75 | |
Pump motor |
kW | 5,5 | |
Net weight |
Kg | 8300 | 9200 |
Gross weight |
Kg | 8650 | 9600 |
Overall dimensions |
mm | 3700x1200x2600 | 3700x2500x2600 |
saw - sawing system
